Roller Shade Operators & Hardware

Operators are the systems that raise and lower the shade.

Hardware includes options for covering the shade roller, built-in options, audio-visual tracks and channels, and color choices.

Motorized Roller Shade Operators

Motorization offers the most convenient and versatile roller shade operation and control.

Motor Options

Insolroll offers a full range of motor technology options to fit every application, including those where hard-wiring is not practical.

AC motor shade drawing w brackets



  • AC Four-wire directional motors
  • AC Radio motors
  • AC Intelligent motors
  • AC Ultra Quiet motors
  • DC Battery motors

Learn more about motorized shades

Somfy TaHoma app 3 Insolroll motorized shades

Motor Features Available

  • UL-Listed Motorized Shading Systems– Unique in the industry
  • Quiet motor technology– great for nurseries, bedrooms, and more
  • Control Options & Building Automation– a myriad of Somfy RTS (Radio Technology Somfy) options for home control and connectivity
    • Simple handheld remote
    • Wireless wall switch
    • Tablet or smartphone control
    • Voice control
    • Building automation

Learn more about control methods

Shades for Large Windows

Insolroll offers a large selection of wide-width fabrics to cover large windows. There are several approaches to covering windows that are wider than the width of the fabric, and your Insolroll Dealer can help you understand the advantages of each solution and select the one best for your application.

Multiple Panel Non-railroaded Shades

For applications with large shades, 2 or 3 non-railroaded panels can mounted on a single roller tube with a single motor. The 3/4″ fabric gaps are typically lined up with window mullions for a crisp, finished appearance.

coupled shades exposed bracket

Coupled Motorized Shades

Another technique for covering wider applications is coupling single or multiple shades on separate roller tubes supported by a center bracket.

  • Coupled shades can be made with up to 5 non-railroaded shade panels on a single motor.
  • Coupled shades can have exposed roller or 4″ fascia
  • Coupled and multiple panel shades can provide easier installation and cost efficiency.

Manual Roller Shade Operators

Quiet Spring Roller Child Safe Shade operator

Cordless Operation

Quiet Spring Roller

  • Easily operate with a tug of the hem bar
  • Stays where you place it
  • Easy spring tension adjustment


Insolroll exposed roller

Clutch Operation

  • Continuous loop bead chain
  • Standard and Decorative Options
  • Sizes to accommodate all shade sizes, with available spring assist to make lifting larger, heavier shades easier.

Insolroll Metal Select Chain Guide colors

Chains, Guides, & Child Safety

Insolroll sells only locking chain guides, tested and assured to meet the current industry standard for child safety: ANSI/WCMA A100.1-2018.

  • Insolroll’s proprietary Metal Select Locking Chain Guides
    • All metal
    • 6 finishes
    • Exclusively from Insolroll

Insolroll Universal chain guide color selection

  • Universal Chain Guide in 4 colors
  • 6 Poly bead chain colors
  • 6 Metal bead chain colorsInsolroll bead chain color selection

Standard R-Series Clutchesmanual clutch shade operators

  • Black, White, or Vanilla
  • Spring Assist in Black or White

Insolroll Decorative Clutch finishes

Decorative Clutch Shades

Simple, elegant manual operation with chic exposed roller and clutch and bracket hardware in sophisticated finishes.

  • 5 matte finishes
  • 6 metal finishes
  • Chains and guides to match

2018 Child Safety Merchandising tag- Insolroll

Exposed and Covered Roller Systems

Insolroll exposed roller
Exposed Roller
Insolroll decorative clutch stainless steel
Decorative Exposed Roller

Exposed Roller Option

In some applications, an exposed roller and operator is just what the design calls for. Designers often use this approach in lofts and spaces with a very urban or industrial design scheme.

  • Manual Operator Exposed Roller Shades feature visible roller, brackets and clutch or QSR operators.
  • Decorative Clutch Operator Shades feature visible roller with decorative brackets and clutch, available in 11 finishes
Exposed Motor Bracket with end cap



  • Motorized Exposed Roller Shades In the case of motorized shades, Insolroll offers designer-grade brackets and end caps to create a simple, unified and finished appearance.

Covered Roller Options

For applications that call for a more finished appearance, roller and operator cover systems are usually specified. Insolroll has several systems for masking these components.

Insolroll® roller shade fascia in clear anodized color/finish
Fascia, shown Clear Anodized outside mount

Fascia System Option

Our Fascia System protects fabric when it is retracted and conceals the roller for a more clean-lined appearance than the exposed roller option. Fascia creates architectural detail, and can either blend in or stand out in your design scheme. Available inside or outside mount.

  • Black
  • White
  • Vanilla
  • Bronze
  • Clear Anodized
Cassette white with fabric insert
Fabric-wrapped cassette shown in White



Cassette Option

Available in 3″ and 4″ sizes, our cassette option both protects and conceals the fabric roller.

  • White
  • Black
  • With or without matching fabric wrap
Insolroll 6" valance for dual and large shades
6″ Dual Shade Bracket shown in Bronze

6″ Dual Shade Valance

  • For 5 1/2″ x 5 1/2″ dual brackets
  • For dual clutch shades and smaller motor systems
  • Ideal for hotel and conference room applications
  • Available White, Bronze, and Clear Anodized

Custom Paint Options

You may also request custom color paint for the Fascia, Flap & Hanger, 6″ Valance, Sidetrack, and Sill Channel.

Things to know about ordering custom paint:

  • Approximately three week standard lead time for custom paint orders.
  • Textured paint can be difficult to clean.
  • End Caps for motorized shades can not be painted.

Please click the links below to view the custom paint color options, keep in mind that digital interpretations may vary. To verify the color please request a color catalog via email to info@insolroll.com

Red, Yellow, Green, and Blue Cardinal Colors

Specialty Finishes Cardinal Options

White, Beige, Super Durable Cardinal Colors

Black & Grey Cardinal Colors

Built-in Hardware Options

Solar Shades built into pocket
Insolroll roller shades can be installed in a cavity above the ceiling, either in our Extruded Shade Pocket or a site-built pocket. When the shade is lowered, no hardware or roller is seen at all, and when the shade is raised, it disappears out of sight into the pocket.

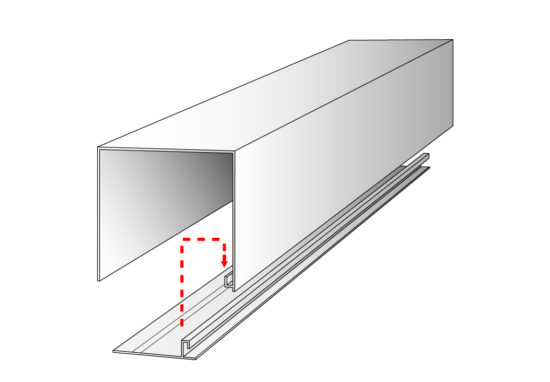

Extruded Shade Pocket Option

Insolroll offers an extruded aluminum shade pocket in 5″ x 5 1/2″ size. This approach is perfect for grid- and drop-ceiling applications. It is also used as a roller and fabric enclosure for very tall shades that would not fit into a fascia system.

site-built pocket residential solar shades

Site-built Shade Pocket

A cavity built at the time of construction above the window, into which the shade roller is installed; the only Insolroll hardware accessory required for this type of application is a Flap and Hanger, which partially closes the pocket opening, but allows easy access and further masks the roller from view.


Access Flap & Hanger

Access Flap & Hanger

For a site-built pocket application, the lower opening can be finished with an extruded Flap & Hanger, which also provides access to the roller when needed.

Blackout shade in cafeteria

Audio-Visual Hardware Options


Insolroll Blackout Shade System

Fascia System with Audio-visual Accessories

Our Audio-visual and dual shades are available with fascia and additional accessories that block light at the edges and bottom of the shade.

  • Fascia System to conceal the roller in 5 colors
  • Side tracks to reduce light leakage into the room in 3 colors
  • Sill channel used to prevent light leakage at the sill for extreme darkening applications in 3 colors

Custom Paint Options

You may also request custom color paint for the Fascia, Flap & Hanger, 6″ Valance, Sidetrack, & Sill Channel.

Things to know about ordering custom paint:

  • Approximately three week standard lead time for custom paint orders.
  • Textured paint can be difficult to clean.
  • End Caps for motorized shades can not be painted.

Please click the links below to view the custom paint color options, keep in mind that digital interpretations may vary. To verify the color please request a color catalog via email. info@insolroll.com

Red, Yellow, Green, and Blue Cardinal Colors

Specialty Finishes Cardinal Options

White, Beige, Super Durable Cardinal Colors

Black & Grey Cardinal Colors


Note: For many school and conference room applications it may be preferable to install shades without tracks to allow some light into the room so participants can take notes, etc.

Dual Shades hotel guest roomDual Roller Shades

Insolroll Dual Shades provide total light management in a single window treatment, with two rollers, operators, and fabric types in one window. Blackout and solar screen fabric are the most common dual shade fabric pairing.

Available with:

    • Double fascia system option
    • 6″ x 6″ valance system option
    • Side Tracks
    • Sill Channels
    • Built-in option; mounted into a custom ceiling pocket to completely conceal the roller systems
      • Site-built pocket option– created at the time of construction
      • Extruded Shade Pocket option (Insolroll hardware option) installed above the ceiling
      • Shades descend from the ceiling when in use, and disappear from view when retracted.


dual Clutch shades w fascia
Dual bracket with 4″ fascia
(clutch shades shown)
Insolroll Dual Shade with 6" valance
Dual shade with 6″ valance
Dual shade exposed bracket in pocket detail
Dual shade in site-built pocket
with access flap and hanger
