Oasis® 2700 Patio Sun Shades

Protection for smaller patios from glare, heat, UV rays and golf balls, with enhanced daytime privacy.

Oasis 2650 Patio Porch Shades Brown

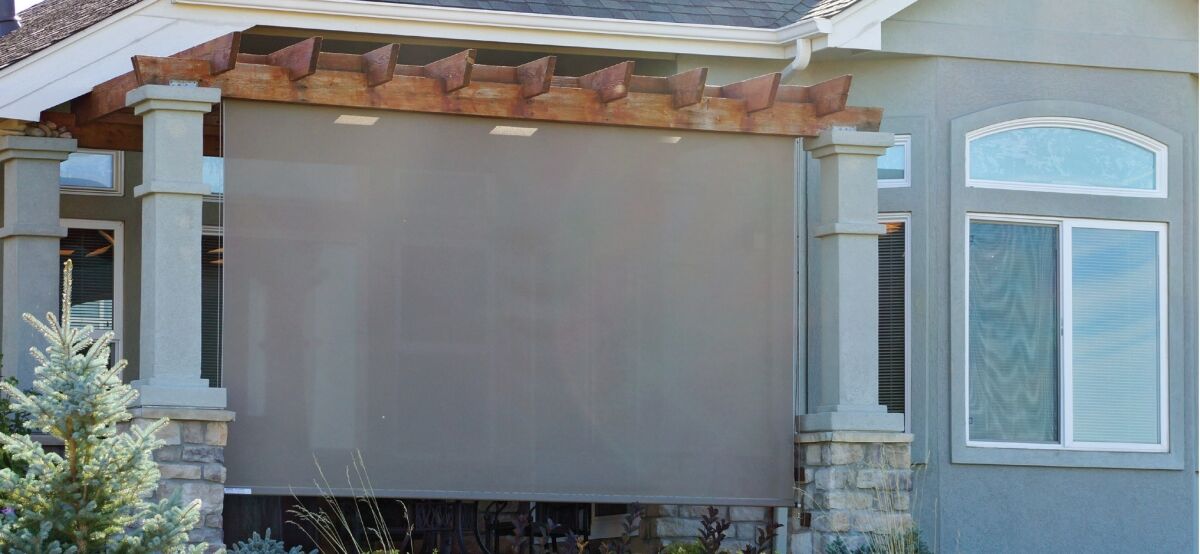

Oasis 2700 Patio Sun Shades Block the Sun, Not the View

Glare, heat, and damaging UV rays from the sun can limit the hours you can use and enjoy your patio, but Oasis 2700 Patio Sun Shades change all that! Fully retractable solar screen shades allow view-through to the outside while significantly reducing the bothersome effects of the sun on covered patios, pergolas and decks. Enjoy your outdoor living space to the fullest!

  • Custom sizes to 12′ wide
  • Manual OR motorized operation
  • Choice of side track or cable guide fabric stabilization system
Heat-sealed fabric edges

Features That Make Oasis 2700 Superior to Other Patio Shades

  • All fabric edges on the Oasis 2700 Patio Shade are welded, or heat sealed to prevent unsightly fraying of the edges.
  • At the bottom edge, a metal hem bar is inserted in a welded fabric pocket to guard against tearing at the hem bar
  • Manual hand crank operation available

Solar Screen Fabric is Engineered for Performance and Designed for Function

Solar screen fabrics are woven to precise standards in order to control sun without blocking view-through. Fabric color and openness (tightness of the weave) determine how much light, heat and UV are allowed to pass through into the patio space; light colors provide better heat reduction and dark colors provide better glare reduction, while more loosely woven fabrics allow more view through and more tightly woven fabrics allow greater daytime privacy. Every fabric is laboratory-tested to determine precisely how much of the sun’s energy is reflected, absorbed, and allowed to pass through, and this data is available when selecting fabric.

Oasis 2700 Patio Sun Shades with flower pot

Solar Screen Patio Shades for Large and Small Openings

Oasis® 2700 Solar Screen Shades are engineered for smaller patio openings up to 12′ wide. For larger openings, see Oasis 2800. We can accommodate small openings as narrow as 31 3/8″ with a motorized shade. All Oasis 2700 shades are custom-made and feature a cable guide system to provide greater stability in a light breeze.  A fully enclosed 4″ x 4 1/2″ extruded aluminum head box protects the fabric when retracted and provides a finished appearance. Shades are available with manual crank or motorized operation.

Visit Oasis 2700 Patio Shades Image Gallery

Oasis 2700 Patio Sun Shade Fabric Collection

Solar Screen Fabrics

For glare control, heat control, and UV control.

Privacy Fabrics

For privacy (with zero view-through); translucent fabric allows light to flow through, and blackout fabric blocks light.

Download Technical Fabric Characteristics (PDF)

Aurora

Solar Screen Fabrics Insolroll® Architectural Shades, Oasis® Patio Shades For Both use

Fire-rated (FR) Aurora solar screen fabric consists of vinyl-coated polyester yarns woven in a 2 x 2 basketweave configuration. This value-priced fabric provides excellent view-through visibility. 27% Polyester, 73% PVC solar fabric in 3% and 5% openness choices. Click to view larger swatches.

Bone
Charcoal
Charcoal/Bronze
Grey/Bone
White/Bone
White/Grey
Download Technical Fabric Characteristics (PDF)

Kona

Solar Screen Fabrics Insolroll® Architectural Shades, Oasis® Patio Shades For Both use

Vinyl-coated fiberglass solar screen fabric, Kona is woven in a basket weave configuration for excellent view-through. Available in 5% and 10% openness.

Bone
Bone/Platinum
Bronze
Charcoal
Charcoal/Grey
White
Download Technical Fabric Characteristics (PDF)

Maui

Solar Screen Fabric Oasis® Patio Shades For Exterior use

Vinyl-coated polyester solar screen fabric, Maui is woven in a basket weave configuration for excellent view-through. Available in 3% and 5% openness.

Black
Carbon
Chestnut
Dark Bronze
Mocha
Stucco
White/Grey
Download Technical Fabric Characteristics (PDF)

Natural Weave Linen

Solar Screen Fabrics Insolroll® Architectural Shades, Oasis® Patio Shades For Both use

Our Natural Weave Linen collection features FR solar screen fabrics woven with a slubbed texture and varied colors for a sophisticated, linen-like appearance. Made of polyester and vinyl, the fabric's 3% openness provides excellent outward visibility. Click to view larger swatches.

Burlap
Cinnamon
Clay
Cream
Fig
Pearl
Taupe
Topaz
Download Technical Fabric Characteristics (PDF)

Palisade

Solar Screen Fabrics Oasis® Patio Shades For Exterior use

Woven from thick, 165 Tex core yarns, Palisade solar fabric has added strength and durability for extra-wide patio shade applications. Weather-resistant, this premium fabric features basket weave pattern for optimal view-through. Available in 3% and 5% openness. Charcoal and Charcoal/Cocoa is also available in 10% openness.

Charcoal
Charcoal/Cocoa
Sable White
Sable Wood
Download Technical Fabric Characteristics (PDF)

Dusk Exterior Blackout

Blackout Fabrics Oasis® Patio Shades For Exterior use

Made of solution-dyed acrylic fiber with a PVC back coating, Dusk blackout/privacy fabric is completely waterproof and combines the elegance of an acrylic canvas-look fabric with the waterproof performance of PVC on the out-facing surface. Offering complete privacy, dusk's PVC Back coating features Blackout finishing for thermal and visual comfort, as well as maximal protection from the sunlight.

Beige
Raw
White
Download Technical Fabric Characteristics (PDF)

Shore

Translucent Fabrics Oasis® Patio Shades For Exterior use

High tensile- and tear-strength acrylic translucent fabric for privacy, sun protection and resistance to rain. Click to view larger swatches.

Cadet Grey
Charcoal Tweed
Linen Tweed
Raw
Download Technical Fabric Characteristics (PDF)

Tuff Screen®

Insect Screen Oasis® Patio Shades For Exterior use

Heavy-duty vinyl-coated insect screen designed to keep out mosquitoes and other insects. Three times stronger than regular insect screens, it is pet-resistant, tear-resistant and puncture-resistant. 45% openness; click to view larger swatch.

Black
Download Technical Fabric Characteristics (PDF)

Tuff Screen® No-See-Ums

Insect Screen Oasis® Patio Shades For Exterior use

Vinyl-coated polyester insect screen with very small apertures to keep out very small insects such as No-See-Ums, or biting midges. 48% openness; click to view larger swatch.

Black

Oasis® 2700 Patio Shade Operation

Motorized Operation

Insolroll offers 2 industry leading motorization systems for Oasis 2700 Patio Shade. The convenience of motorization offers on-demand shade with one-touch operation as well as control by scenes, scheduling, voice control, and mobile device control.

Somfy Radio Motors and Controls

Somfy has been the international leader in motorization for outdoor shading systems for nearly 50 years. Insolroll’s Quiet Radio Motor (IQM-ACR) is a 110 V AC motor utilizing a 6 Nm Somfy motor for the Oasis 2700.

Additional Somfy Motor Options

  • IQM-AC: 110 V AC quiet bi-directional motor with 4-wire hardwire switch control
  • IQM-485-AC: 110 V AC power input and data cable connection to digital network. Ideal for large home automation and building control applications.

Somfy Motorized Shade Controls

  • Simple radio control with wireless wall switch or outdoor radio transmitter
  • Somfy TaHoma® app-based control allows shade control with mobile devices even when you’re away and features voice control

Somfy 1 channel wireless wall switch
Indoor wireless Radio Wall Switch (available with 1,2,3.4, or 5 channels)

Somfy patio radio transmitter
Outdoor radio transmitter (single-channel or 5-channel)

Somfy TaHoma app Insolroll motorized shades
Somfy TaHoma® wifi app-control for iOS, Android, voice control and integration devices



Lutron Electronic Drive Unit Systems

Our technical alliance with Lutron Electronics brings best-in-class motorized outdoor shading systems to the luxury home market. Lutron Roller 100 Electronic Drive Unit 35 V DC drive integrates seamlessly with Lutron Homeworks QS®, Radio RA2®, and Caséta® Controls.

Lutron Control Options

  • Simple wireless switches and transmitters for standalone applications, RadioRA2® or Caséta wireless lighting control systems
  • Complete integration with Lutron HomeWorks®

Lutron dongle receiver for motorized shade from Insolroll
RF Dongle Radio Receiver

Lutron pico wireless remote transmitter
Pico® Wireless Remote Control Transmitter

Lutron pica tabletop pedestal for pica remote for motorized patio shade
Tabletop pedestal for Pico Remote

Learn more about Oasis Shades Driven by Lutron

Manual Operation

Hand crank and gear operation is available for applications where power is not available.





Oasis® 2700 Patio Shade System Hardware

4″ x 4 1/2″ Extruded Aluminum Head Box

  • All shades fully enclosed in compact 5-sided extruded aluminum head box (pictured at right)
  • Aluminum end caps
  • Heavy-duty mounting brackets
  • For exposed roller or pocket applications, use Oasis 2800 system
Ceiling mount
Surface mount




Standard Hardware Colors

  • White
  • Bronze
  • Tan
  • Black

Custom Hardware Colors

  • Approximately three week standard lead time for custom paint orders.
  • Plug buttons can not be painted to match.
  • Textured paint can be difficult to clean.

Download Color Guide (Colors may vary on different digital devices)

Track Guide or Cable Guide Fabric Stabilization Systems

Fabric stabilization systems keep shade fabric where it belongs. Each system is designed to address the needs of individual applications. Track Guide system is well-suited to applications with squared or flat pillars or openings.

Oasis 2700 Side track guide with metal pin

Track Guide System

The Oasis Track Guide system features an aluminum side track designed to allow smooth raising and lowering of the shade while keeping fabric in place with a specially designed hem bar. The hem bar is designed with a metal pin at each end which fits into the side track.

  • Face mount or side mount
  • Vinyl rail guard for smooth operation
  • Matching plug buttons for face mount applications; not required for side mount
  • White, Bronze, Tan, and Black


Oasis 2700 Cable Guide detail

Cable Guide System

Insolroll’s Oasis Cable Guide System features a nylon-coated stainless steel cable anchored in a deck mount or side mount bracket. Cable passes through a nylon guide pin in the specially designed hem bar. Cable guide system is excellent for applications with rounded or angled columns or masonry.

  • Cable Tension Lock
  • Choice of wall mount or deck mount bracket
  • Silver


Insolroll Oasis 2800 cable guide wall mount diagramInsolroll Oasis 2800 deck mount cable guide installation diagram

Hardware Colors

  • Standard: White, Bronze, Tan, and Black
  • Custom:
